0380 5121152 - 0507 2508848 AD- Led Ekran- P4-0.77x1.28
AD- Led Ekran- P4-0.768mx-1.28
IP65 standartlarında hava koşullarına dayanıklı;
Yüksek çözünürlüklü görüntüler ve uzun ömür;
Çeşitli boyut ve en boy oranları için kolayca yapılandırılabilir;
Geniş görüş açısı;
5000 nit'ten itibaren parlaklık.
Specification:
| Parameter | Unit | Value |
| Pitch | mm | 4 |
| Brightness | nits | 5000~5500 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 40 |
| LED Area | mm | 768*1280 |
| Cabinet size | mm | 768*1280*120 |
| Panel area | sq. m. | 0.983 |
| Panel material | Epoxy paint coated Cold rolled steel | |
| Ingress protection (front/rear) | IP | IP65 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | Outdoor 3in1 SMD |
| Resolution per panel | 192*320 | |
| Dot per panel | 61440 | |
| Dot per sq. meter | 62500 | |
| LED per sq. meter | 62500 | |
| Recommended minimum viewing distance | m | 3 |
| Recommended best viewing distance | m | 3~100 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel | 1000 |
| Input power (typical) | Watts / panel | 500 |
| Lifetime (50% brightness) | Hours | ≥100000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |

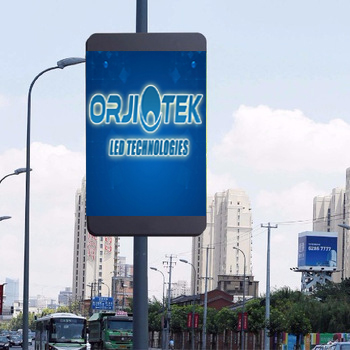

| Mounting system | Fixed to street light pole | |
| Controller | WIFI / 4G group controller |
