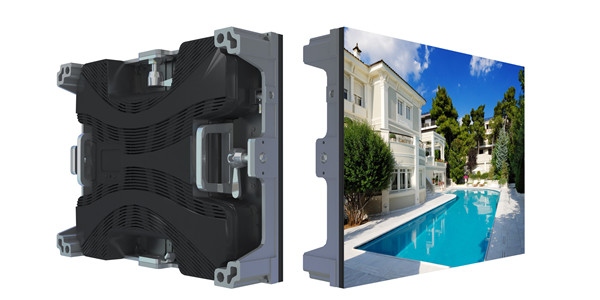

0380 5121152 - 0507 2508848 P10mm SMD Outdoor Die-Cast Rental
| Items | Value |
|---|---|
| Pixel Pitch | 10mm |
| Physical Density | 10,000 pixels/m² |
| Scan method | 1/2 |
| LED Arrangement | SMD3535 |
| Module Resolution | 32x16 pixels |
| Module Dimension | 320x160 mm |
| Cabinet Resolution | 64x64 pixels |
| Cabinet Dimension | 640x640 mm |
| Cabinet Weight | 13 kg |
| Brightness Level | ≥5,500cd/m² |
| Max Power Consumption | 750w/m² |
| Ave Power Consumption | 250w/m² |
| Viewing Angle | 140°/140° |
| Operating Power Source | AC90-260V 50-60Hz |
| Operating Temperature | −10°- 45°C |
| Refresh Rate | ≥1,800Hz |
| Transparent Rate | N/A |
| Life Span | 100,000Hours |
| MTBF | 5,000Hours |
| Protecting Rating | IP65 front, IP54 back |
| Signal Input Source | Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI |
| Curvable | N/A |
| Max Rigging | 12.8m, or 20 tiles |
| Verification | CE |
