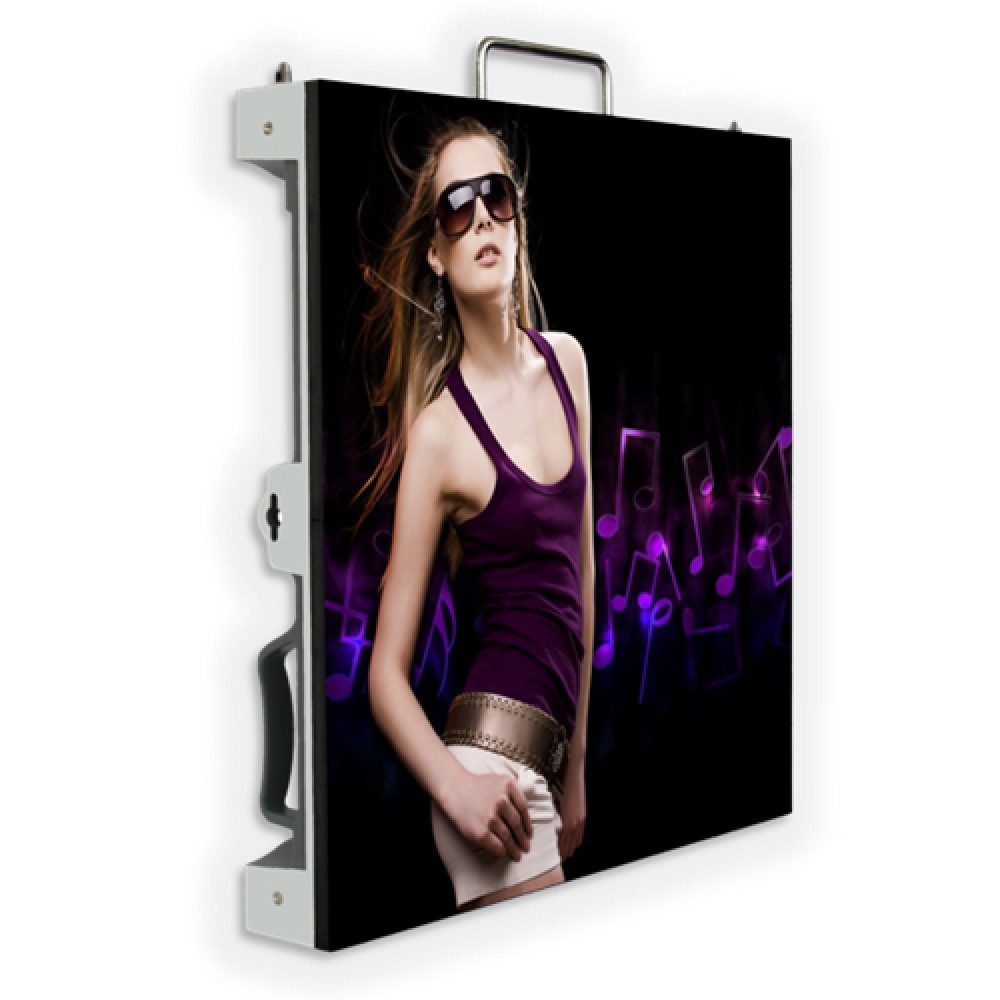

0380 5121152 - 0507 2508848 P6.25mm Indoor Die-Cast Rental
| Items | Value |
|---|---|
| Pixel Pitch | 6.25mm |
| Physical Density | 25,600 pixels/m² |
| Scan method | 1/8 |
| LED Arrangement | SMD3528 white LED (black available) |
| Module Resolution | 40x40 pixels |
| Module Dimension | 250x250 mm |
| Cabinet Resolution | 80x80 pixels |
| Cabinet Dimension | 500x500 mm |
| Cabinet Weight | 9kg |
| Brightness Level | ≥1,500cd/m² |
| Max Power Consumption | 200 W/tile |
| Ave Power Consumption | 100 W/tile |
| Viewing Angle | 140°/140° |
| Operating Power Source | AC90-260V 50-60Hz |
| Operating Temperature | −10°- 45°C |
| Refresh Rate | ≥1,800Hz |
| Transparent Rate | N/A |
| Life Span | 100,000Hours |
| MTBF | 5,000Hours |
| Protecting Rating | IP30 |
| Signal Input Source | Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI |
| Curvable | N/A |
| Max Rigging | 15m, or 30 tiles |
| Verification | CE |
