AD- Led Ekran- P5-0.64x1.60





AD- Led Ekran- P5-0.64x1.60

IP65 standartlarında hava koşullarına dayanıklı;
Yüksek çözünürlüklü görüntüler ve uzun ömür;
Çeşitli boyut ve en boy oranları için kolayca yapılandırılabilir;
Geniş görüş açısı;
5000 nit'ten itibaren parlaklık.



Specification:

Parameter Unit Value
Pitch mm 5
Brightness nits ≥5500
Color temperature deg. K 6500
Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle – Vertical (50% brightness) deg. 140(-70 ~ +70)
Panel weight kg 40
LED Area mm 640*1600
Cabinet size mm 640*1755*120
Display area sq. m. 1.024
Panel material   Epoxy paint coated Cold rolled steel
Ingress protection (front/rear) IP IP65/65
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B Outdoor 3in1 SMD
Resolution per panel   128*320
Dot per panel   40,960
Dot per sq. meter   40,000
LED per sq. meter   40,000
Recommended minimum viewing distance m 3.8
Recommended best viewing distance m 5~100
Colors   281 Trillion
Grey scale (linear) Levels 65536 levels per color
Brightness control Levels 100
Contrast ratio   1000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3000
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts / panel 800
Input power (typical) Watts / panel 320
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 525~530
Blue wavelength (dominant) nm 470~475
Multimedia data format   DVI,MPG,AVI,WMV,RM etc.
Data interconnection   UTP Cat 5/Optical Fiber

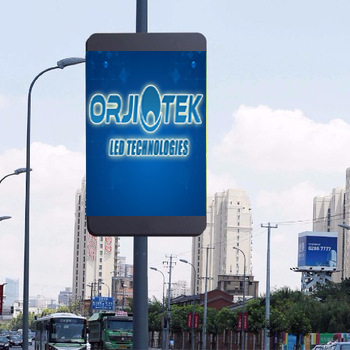

Mounting system   Fixed to street light pole
Controller   WIFI / 3G/ 4G group controller
