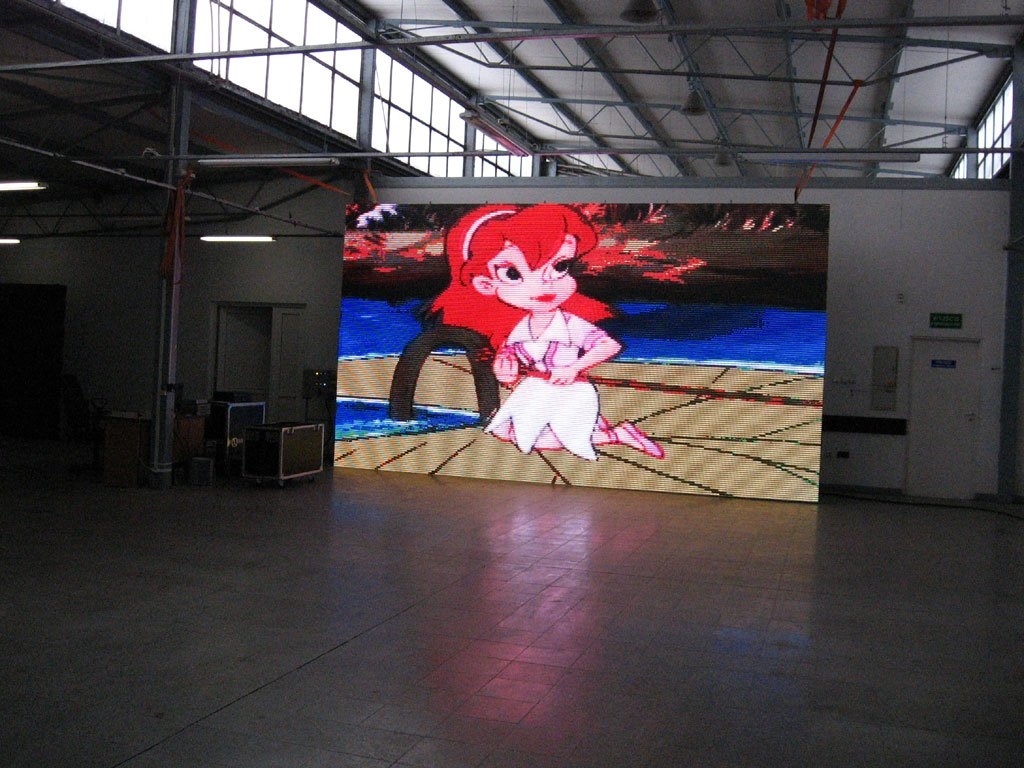

0380 5121152 - 0507 2508848 P10mm RGB İçmekan Led Ekran
Bilgisayar üzerinden kontrol
- Animasyonları anlık olarak değiştirebilme
- Dış mekan kullanım(IP67)
- Senkron ve asenkron kullanım
- 5-100m izleme mesafesi
- Çalışma sıcaklığı:-20°~80°C
| Items | Value |
|---|---|
| Pixel Pitch | 10mm |
| Physical Density | 10,000 pixels/m² |
| Scan method | 1/4 |
| LED Arrangement | SMD3528 white LED (black available) |
| Module Resolution | 32x16 pixels |
| Module Dimension | 320x160 mm |
| Cabinet Resolution | 96x96 pixels |
| Cabinet Dimension | 960x960 mm |
| Cabinet Weight | 35kg |
| Brightness Level | ≥1,500cd/m² |
| Max Power Consumption | 700w/m² |
| Ave Power Consumption | 280w/m² |
| Viewing Angle | 140°/140° |
| Operating Power Source | AC90-260V 50-60Hz |
| Operating Temperature | −10°- 45°C |
| Refresh Rate | Over 1,000Hz |
| Transparent Rate | N/A |
| Life Span | 100,000Hours |
| MTBF | 5,000Hours |
| Protecting Rating | IP30 |
| Signal Input Source | Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI |
| Curvable | N/A |
| Max Rigging | N/A |
| Verification | CE |
