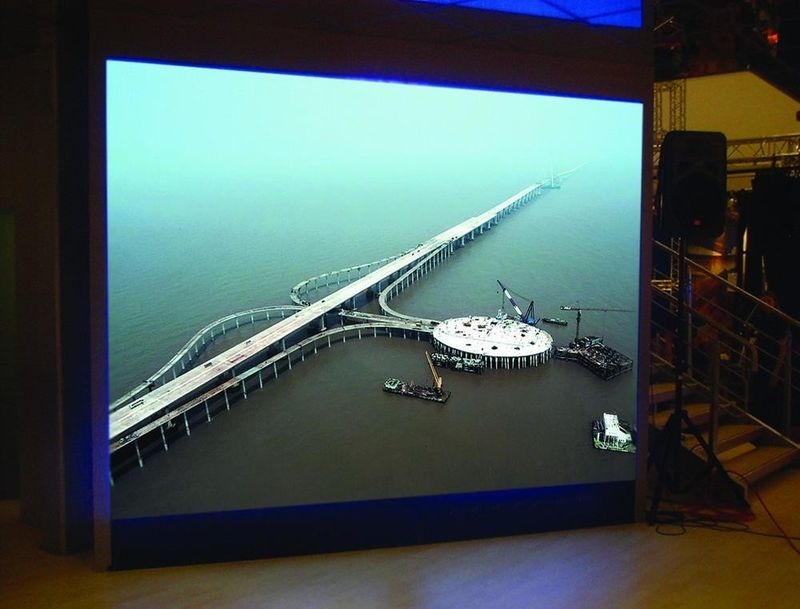

P6mm RGB İçmekan Led Ekran





ItemsValue
Pixel Pitch 6mm
Physical Density 27,778 pixels/m²
Scan method 1/8
LED Arrangement SMD3528 white LED (black available)
Module Resolution 32x16 pixels
Module Dimension 192x96 mm
Cabinet Resolution 128x128 pixels
Cabinet Dimension 768x768 mm
Cabinet Weight 25kg
Brightness Level ≥1,800cd/m²
Max Power Consumption 950w/m²
Ave Power Consumption 350w/m²
Viewing Angle 140°/140°
Operating Power Source AC90-260V 50-60Hz
Operating Temperature −10°- 45°C
Refresh Rate Over 1,000Hz
Transparent Rate N/A
Life Span 100,000Hours
MTBF 5,000Hours
Protecting Rating IP30
Signal Input Source Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI
Curvable N/A
Max Rigging N/A
Verification CE
